CARTESIAN ROBOT
Precision, high rigid, low cost linear actuator

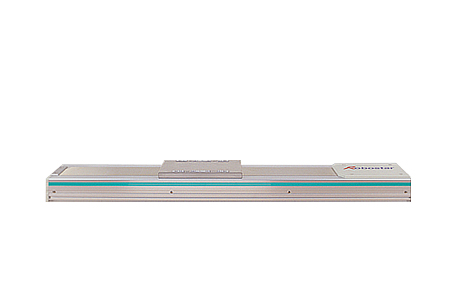

 BALL SCREW ACTUATOR | ||
| High performance ball screw, linear guide, AC servo motor embody high precision, high speed and long lifetime. The exclusive controller & software provide easy programming, flexible application and wide interface. | ||
 |
Speed | Up to -1000mm/s |
| Payload (horizontal) | Up to-120(90)kgf | |
| Rep. accuracy | ±0.02 mm | |
| Stroke | 100 ~1900mm | |
| Motor | AC servo 100 - 750w | |

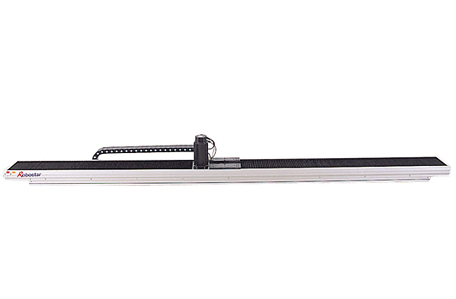

| BELT DRIVEN ACTUATOR | ||
| High speed by high rigid design Long stroke and high precision Heavy payload Anti-dust cover protect from dirty condition | ||
 |
Max. stroke | 4000 mm |
| Payload | 70Kgf | |
| Max. speed | 2000mm/s | |
| Rep. accuracy | ±0.1mm | |

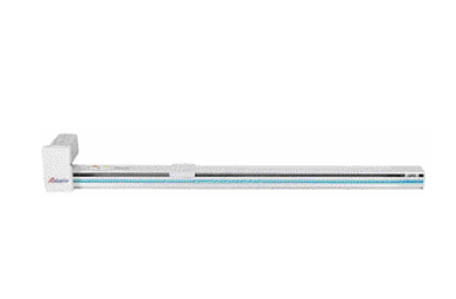

| RACK & PINION ACTUATOR | ||
 |
Max. stroke | 4000 mm |
| Payload | 70Kgf | |
| Max. speed | 2000mm/s | |
| Rep. accuracy | ±0.1mm | |

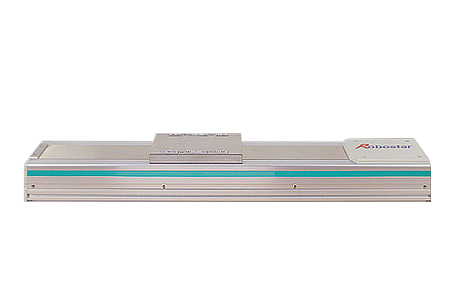

| CLEAN ROOM ACTUATOR | ||
| Seal type design for the effective protection from dusts incoming and grease outgoing. Box style structure realize high stiffness High speed up to Max. 1,600mm/sec. Repeatability ± 0.20mm (option: ±0.005mm) Belt type is available Semiconductor, FPD, Food, Medical Industry | ||
 |
Speed | Up to -1000mm/s |
| Payload (horizontal) | Up to-120(90)kgf | |
| Rep. accuracy | ±0.02 mm | |
| Stroke | 100 ~1900mm | |
| Motor | AC servo 100 - 750w | |
| NEW ZW-UNIT | |||
| Compact design using Ball / Spline High speed, precision realized by high rigidity design | |||
 | RBSI(A)-ZWSA(B) | RBSI(A)-ZWMA(B) | |
| Stroke | 200/300mm, ±180° | 200/300mm, ±180° | |
| Speed | 1000mm/s, 900°/s | 1000mm/s, 720°/s | |
| Rated payload | 2/5Kgf | 5/10Kgf | |
| COMBINATION CONFIGURATION | ||||||
| Standard Combination |  | |||||
| Type | [A-type] | [A+ Guide Axis] | [C-type] | [D-type] | [T-type] | [L-type] |
| Standard Combination |  | |||||
| Type | [H-type] | [ZC - Type] | [V-type] | [WC-type] | [ZWC-type] | [ZWUD-type] |
| SCARA Robot | ||||
High rigid, compact design
| ||||
 |
 |
Max. length | Up to -1000mm/s | |
| Payload | 2 - 20 Kg | |||
| Rep | AB | ±0.02 till ±0.04 mm | ||
| Z | ±0.01mm | |||
| W | ±0.03 till ±0.04° | |||
| Max. speed | 600 till 900°/s | |||
| Motor | 100 till 750W | |||

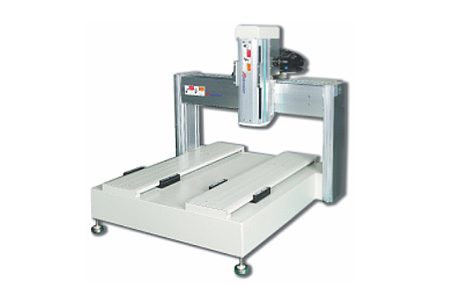

| DESKTOP Robot | ||||
 |
Dual X Axes | Y Axis | Z Axis | |
| Stroke | 300mm | 430mm | 100mm | |
| Speed | 500(1000)mm/s | 250 (500) mm/s | ||
| Combination speed | 707 (1414)mm/s | |||
| Payload | 20(15)Kgf (Horizontal) | 15(7)Kgf (Horizontal) | 20(15)Kgf (Vertical) | |
| Rep. Resolution | ±0.02mm | |||
